SWISSON
Swisson XSR Series DMX & RDM Opto Splitter
SWISSON
Swisson XSR Series DMX & RDM Opto Splitter
In Stock and ready to ship rentals
People who were interested in this product also liked:
Details
Shipping
Details
The Swisson RDM & DMX Single Universe Opto Splitter is a professional-grade device designed to enhance and distribute DMX and RDM signals reliably. Its robust design and optical isolation on each port make it ideal for demanding stage and studio environments.
The Swisson RDM & DMX Single Universe Opto Splitter is a professional-grade device designed to enhance and distribute DMX and RDM signals reliably. Its robust design and optical isolation on each port make it ideal for demanding stage and studio environments.
Shipping
This equipment has been inspected by a Main Light certified technician at one of our locations.
01
Features
- DMX & RDM Boosting: Enhances signal strength for clear transmission.
- Signal Regeneration: Ensures clean signal output.
- Reflection Reduction: Minimizes signal interference.
- Optical Isolation: Protects each port against overvoltages.
- Versatile Connectivity: Supports multiple connector types.
- DMX Only Mode: Filters out non-DMX data for purer signal.
02
Specifications
- Reliability: High-level signal processing for DMX and RDM.
- Connection Types: Available in 5-pin, 3-pin XLR, RJ-45, and screw terminal models.
- Housing Options: Installation, box, rack models.
- Outputs: 5 DMX outputs per universe.
- Line Termination: Built-in feature for signal integrity.
- Weight (Box): 0.4 kg (0.9 lb.).
- Dimensions (Box): 217.5 x 112 x 44.5 mm.
- Ambient Temperature Range: -17 to +55°C (0 to +131°F).
- Power Consumption: 4 W.
- AC Power Input: 100-240 V AC.
Recommended Products
City Theatric

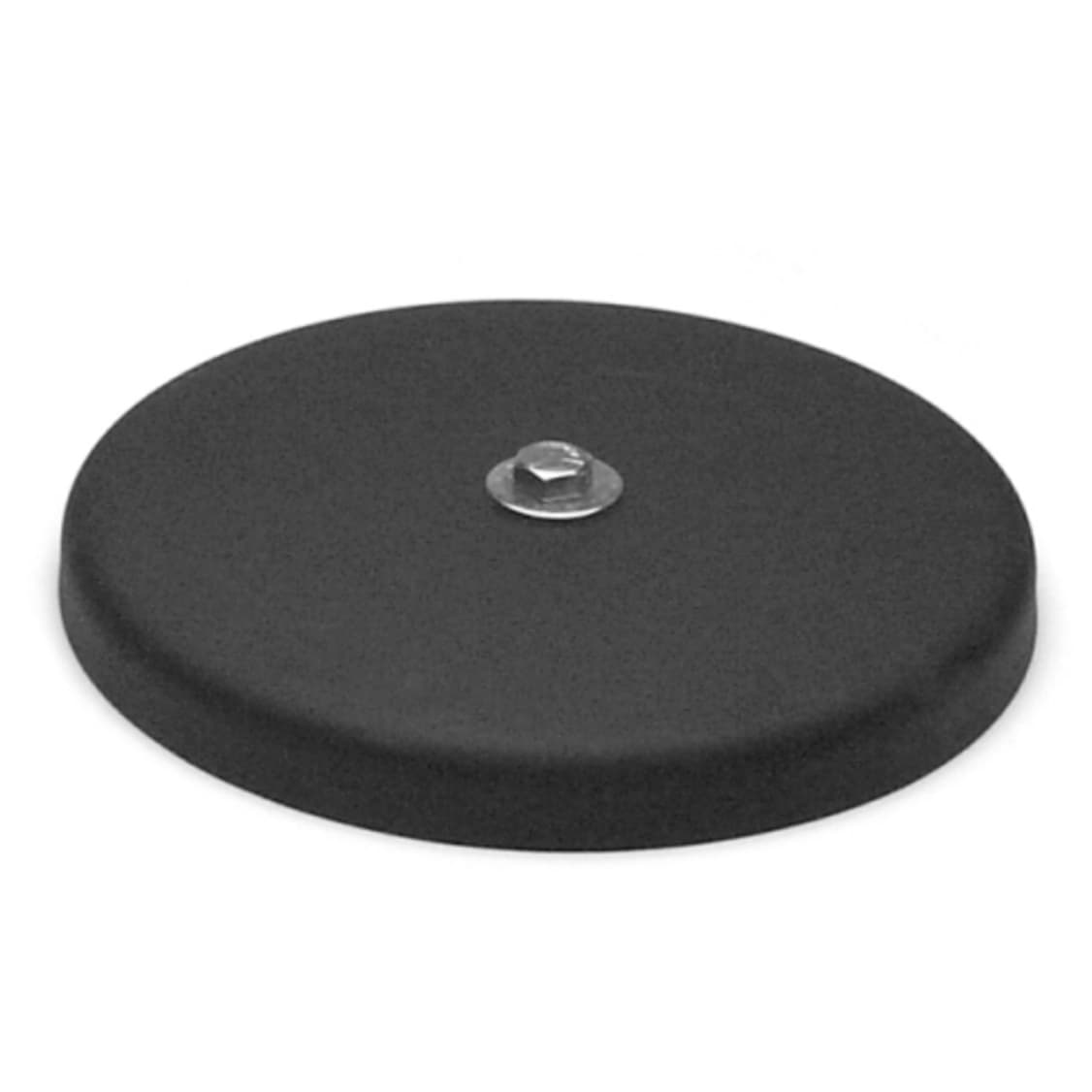

8 lb. base for 1/2 bolt
Ayrton Digital Lighting

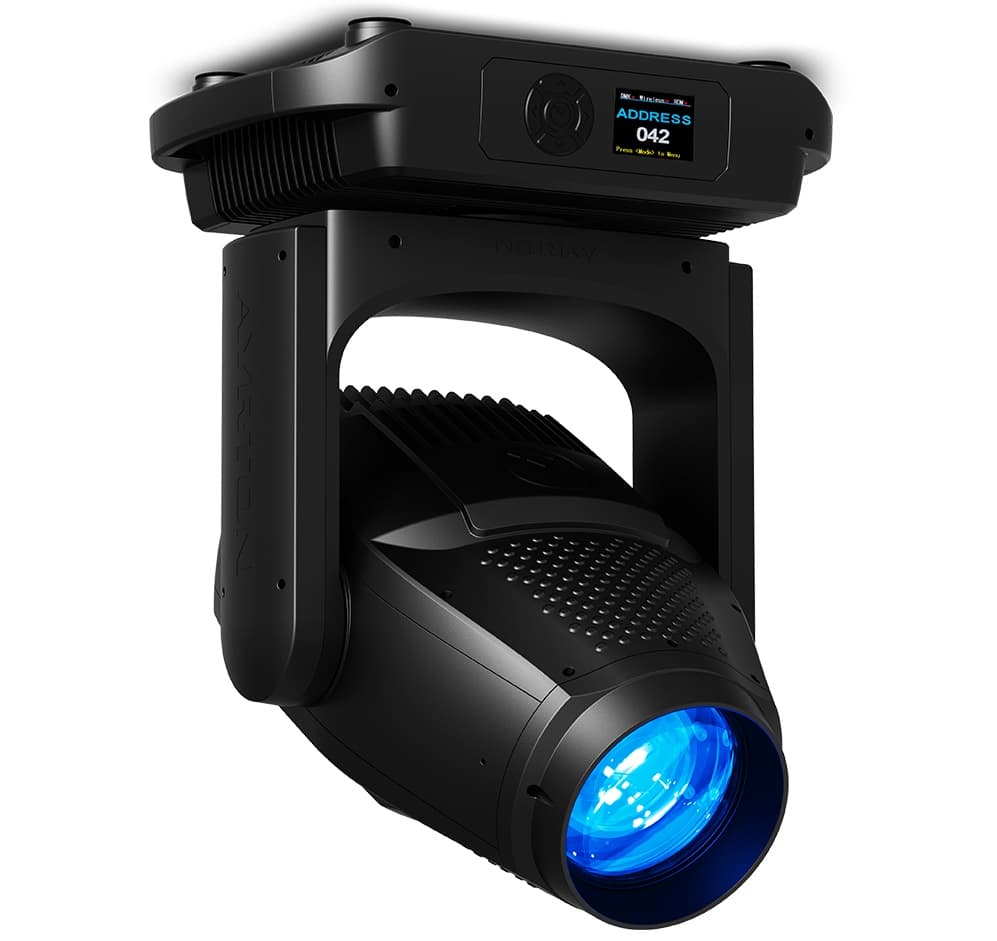

Ayrton Perseo Profile-S IP65 LED
ETC

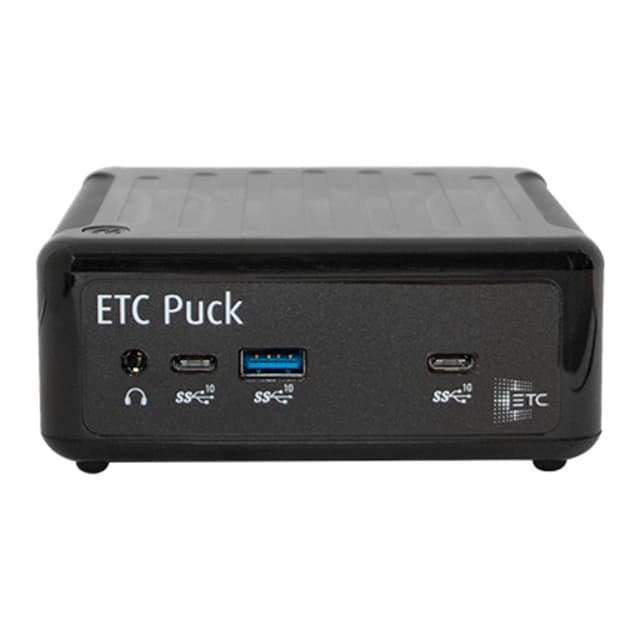

Puck Mini-PC Base 1k Output
LEX Products

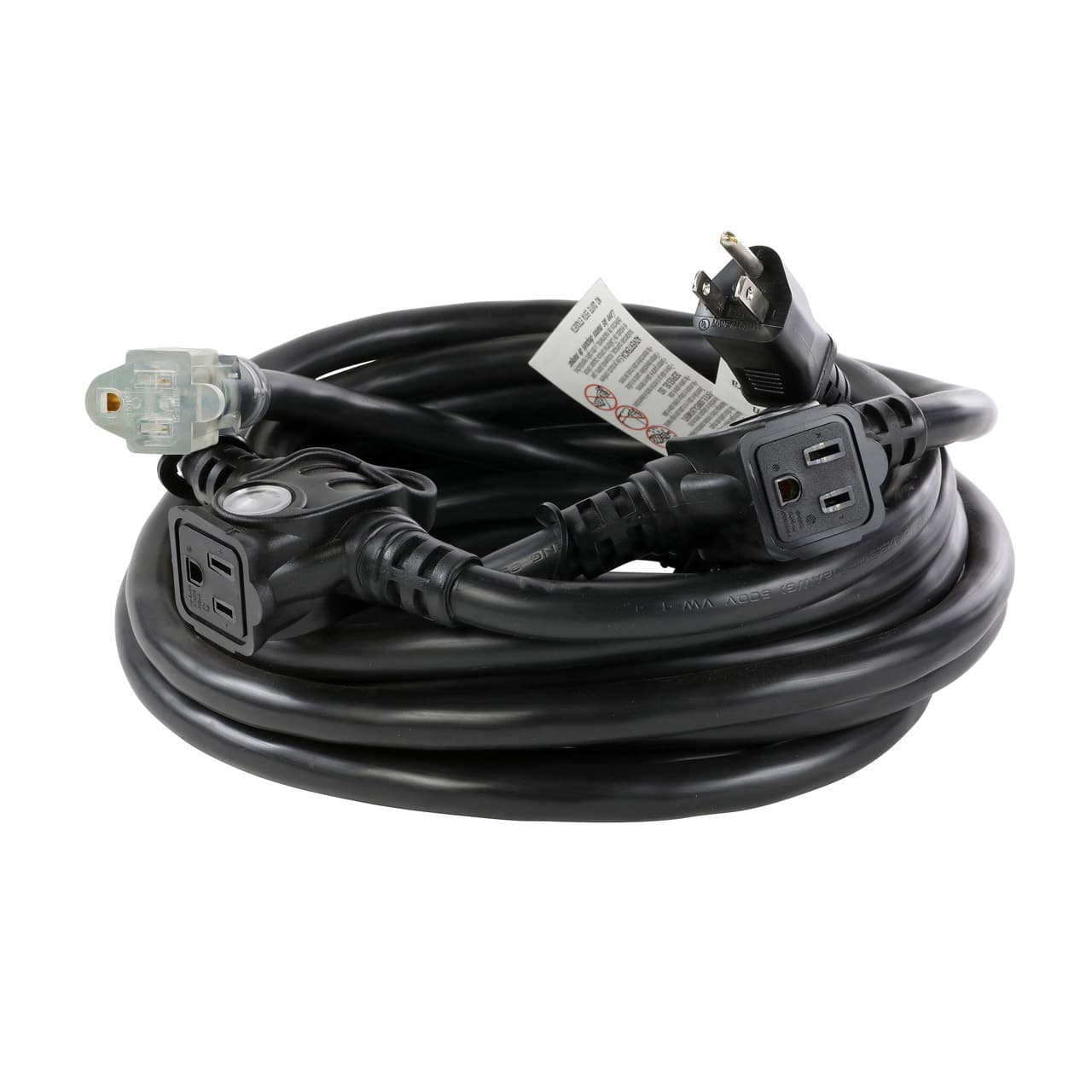

Lex Orchestra E-String 25'
